KST Series Adjustable Bimetallic Thermostat

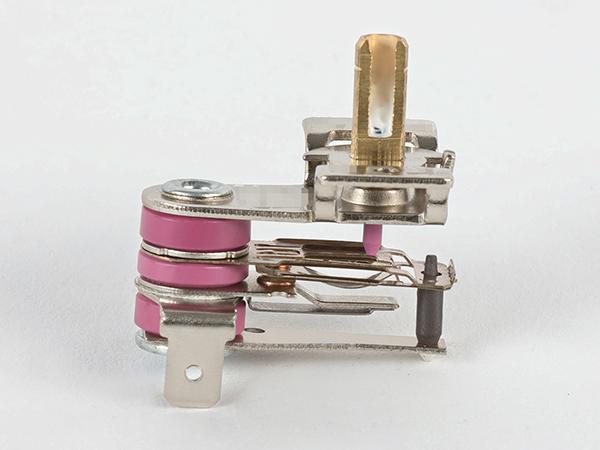

  • KST-100 Thermostat

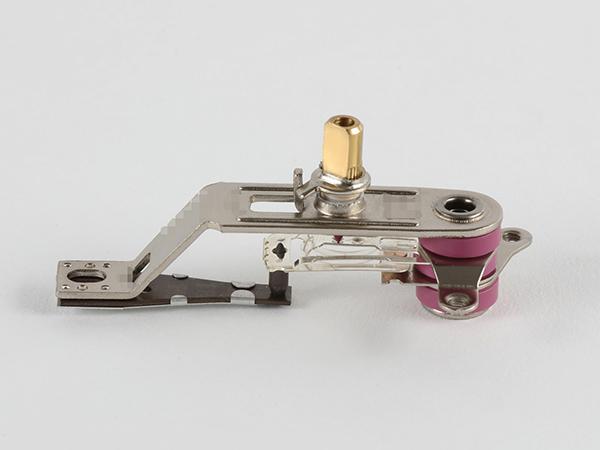

  • KST-200 Thermostat

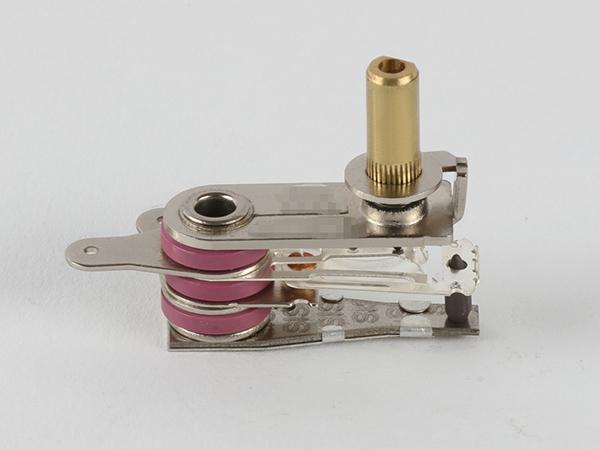

  • KST-300 Thermostat

Features
We use ceramic as KST thermostat’s insulation material, which is capable to withstand high temperature. As a disc bimetallic thermostat, it possesses precise temperature controlling, simple structure and reliable performance. A unique design is introduced to its snap disc, allowing electric contacts a prompt closing. Meanwhile, a thermostat shaft is equipped for free adjustment towards temperature and precise controlling towards temperature.
KST series thermostat enjoys a wide application, including oil heater, fan heater, electric iron, electric oven, electric griddle, grill pan, fireplace and etc.

Technical Parameter
Contact capacity:AC125V 16A; AC250V 16A
Service life: 100,000 times
Operating Temperature:25--250℃
Certification:CQC; TUV; UL

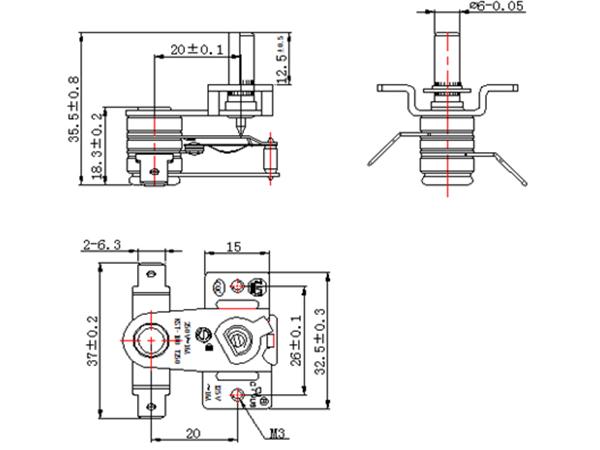

  • KST-100 Thermostat’s Installation Dimensions and Figure
  • KST-200 Thermostat’s Installation Dimensions and Figure

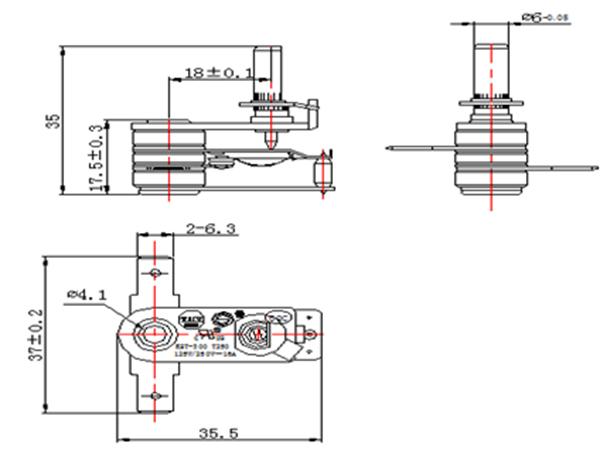

  • KST-300 Thermostat’s Installation Dimensions and Figure
