Thermal Protector, 15AM-D Series

Snap-Action Thermostat, Thermal Cutout, Thermal Control Device, Overload Circuit Protector, Thermal Protection Device, Circuit Breaker

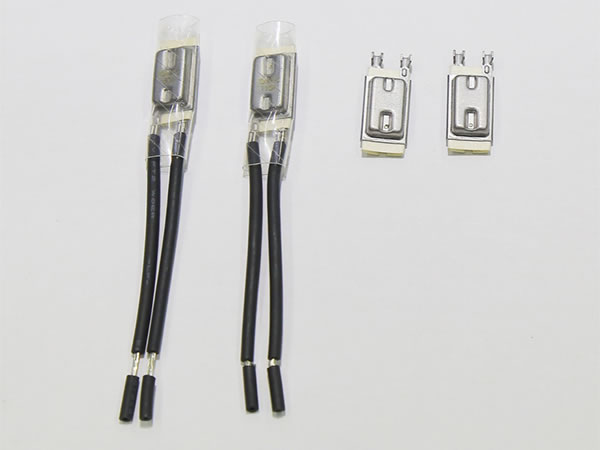

 Thermal Protector, 15AM-D Series

15AM-D series thermal protector is able to detect both temperature and current. The most distinctive part of this circuit protection device is that it can be equipped with bimetal strips of different resistivity to achieve different opening time. It has found wide applications in the overload and power protection system of motor, electrical ballast, transformer, automobile motor, universal motor, integrated circuit, and other electrical equipment.

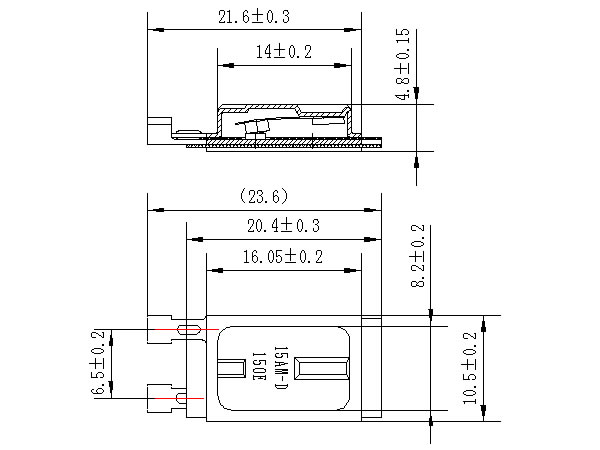

Protector drawings

Wires: AWG 22#-18# tinned copper wire; the wire model, length, and length of wire stripping is customizable;
Housing: steel sheet with Zinc Nickel plating treatment;
Wire casings: polyester insulating sleeve

Main Features
1. Rated contact capacity, resistive load: 13A/250VAC; inductive load: 5A/250VAC, ψ=0.6-0.7
2. Service life under rated contact capacity: 15,000 times
3. Opening temperature: 60~170℃, in increment of 5℃; tolerance of opening temperature: ±5℃
4. We will choose bimetal strips with different resistivity to meet the opening time clients have required
5. The tensile strength of lead wire should be larger than 50N; and the riveting part won’t get loosen easily
6. The contact resistance of thermal switch is no more than 50mΩ

Open and Close Temperature:
Model Opening temperature Closing temperature Model Opening temperature Closing temperature
15AM-D 60X 60±5℃ 45±10℃ 15AM-D 120X 120±5℃ 75±15℃
15AM-D 65X 65±5℃ 50±10℃ 15AM-D 125X 120±5℃ 80±15℃
15AM-D 70X 70±5℃ 50±12℃ 15AM-D 130X 130±5℃ 85±15℃
15AM-D 75X 75±5℃ 55±12℃ 15AM-D 135X 135±5℃ 85±15℃
15AM-D 80X 80±5℃ 55±15℃ 15AM-D 140X 140±5℃ 90±15℃
15AM-D 85X 85±5℃ 60±15℃ 15AM-D 145X 145±5℃ 95±15℃
15AM-D 90X 90±5℃ 60±15℃ 15AM-D 150X 150±5℃ 95±15℃
15AM-D 95X 95±5℃ 65±15℃ 15AM-D 155X 155±5℃ 100±15℃
15AM-D 100X 100±5℃ 65±15℃ 15AM-D 160X 160±5℃ 105±15℃
15AM-D 105X 105±5℃ 70±15℃ 15AM-D 165X 165±5℃ 110±15℃
15AM-D 110X 110±5℃ 70±15℃ 15AM-D 170X 170±5℃ 115±15℃
15AM-D 115X 115±5℃ 75±15℃
SUPPORT (15AM-D series thermal protector)
XXX
Opening temp. Code Opening temp. Code
60 ℃ 060 120 ℃ 120
65 ℃ 065 125 ℃ 125
70 ℃ 070 130 ℃ 130
75 ℃ 075 135 ℃ 135
80 ℃ 080 140 ℃ 140
85 ℃ 085 145 ℃ 145
90 ℃ 090 150 ℃ 150
95 ℃ 095 155 ℃ 155
100 ℃ 100 160 ℃ 160
105 ℃ 105 165 ℃ 165
110 ℃ 110 170 ℃ 170
115 ℃ 115
X
Bimetal Resistivity Code
30 A
70 B
100 C
125 D
250 E
475 F
675 G
