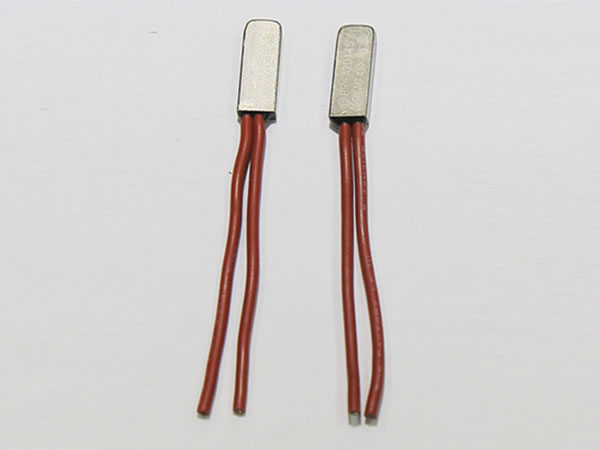

Thermal Protector, BR-A2D/BR-A/BW Series

Motor Circuit Protector, Snap Action Thermostat, Temperature Sensor, Motor Protection Device, Thermal Overload Protector, Bimetallic Thermostat

Thermal Protector, BR-A2D/BR-A/BW Series
Thermal Protector, BR-A2D/BR-A/BW Series Thermal Protector, BR-A2D/BR-A/BW Series
Inquiry Form

BR-A2D, BR-A, and BW thermal protectors are in the same series, which has been existed in the market for a long time and is always in great demand. It is mainly applied in air conditioner motor, washing machine motor, dishwasher motor, ballast, lamps, and battery pack, etc. For a circuit equipped with this kind of thermostat, the current will not pass through the bimetal because the protector works only to detect the temperature, instead of working as a circuit protector.

Features
1. This kind of thermal protector is designed with the enclosure made from stainless steel. The thickened closing can bear 30MPa of pressure
2. Rated capacity of touch: 10A/24V DC, 10A/125V AC, 6A/250V AC
3. Contact resistance of the bimetallic thermostat: ≤100mΩ (under room temperature)
4. Tensile strength of wire: putting the lead wire under a 50N axial pressure for 1min, and the wire shouldn’t get broken or fall off from the protector

Open and Close Temperature
Model Opening temperature Closing temperature Model Opening temperature Closing temperature
BR-A 60 ℃ 60±5 40±10 BR-A 105 ℃ 105±5 70±15
BR-A 65 ℃ 65±5 45±15 BR-A 115 ℃ 115±5 75±15
BR-A 70 ℃ 70±5 50±10 BR-A 120 ℃ 120±5 80±15
BR-A 75 ℃ 75±5 50±15 BR-A 125 ℃ 125±5 85±15
BR-A 80 ℃ 80±5 50±15 BR-A 130 ℃ 130±5 90±15
BR-A 85 ℃ 85±5 55±15 BR-A 135 ℃ 135±5 95±15
BR-A 90 ℃ 90±5 60±15 BR-A 140 ℃ 140±5 100±15
BR-A 95 ℃ 95±5 65±15 BR-A 145 ℃ 145±5 105±15
BR-A 100 ℃ 100±5 70±15 BR-A 150 ℃ 150±5 105±15
