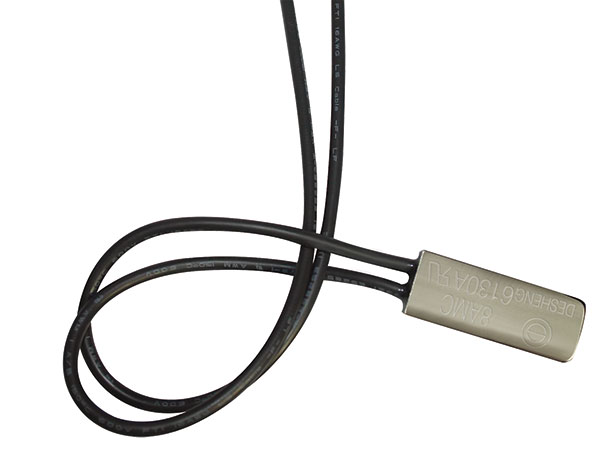

Thermal Protector, 8AMC Series

Circuit Breaker for Automobile Motor, Circuit Protector for Ballast, Thermostat Switch for Transformer, Thermostat for Motor Protection

The most salient feature of 8AMC series thermal protector is large volume and large current carrying capacity. It is mainly used for capacitor-start motor, automobile motor, ballast, and transformer, etc. Protector with PTC heating system is reset manually.

Working principle
This thermal protective device is designed to be sensitive both to current and temperature. The heat generated from the rotation of motor, combined with the current thermal effect of the bimetal, contributes to a temperature rise that the bimetal can sensitively detect. Then the 2 contacts separate and the circuit is open. When the temperature cools down to the prescribed reset value, the bimetal flips again and makes the circuit closed.

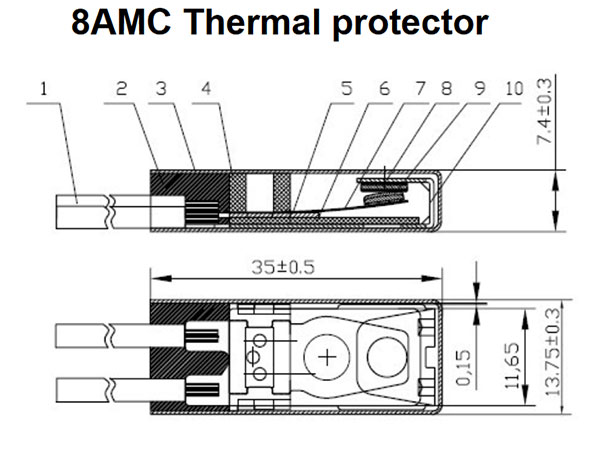

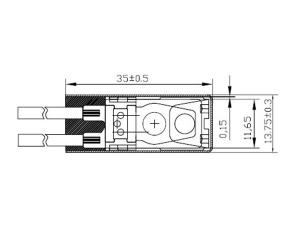

Protector drawings:

1. Lead wire 2.Sealing glue 3. Metal case 4.Fixed base 5.Conducting strip 6. Plate 7. Bimetal disc 8. Stationary contact 9. Movable contact 10. Bracket

Characteristics
1. Contact capacity: 250VAC/25A; 125VAC/50A; 80A/24VDC
2. Trip time: upon your request
3. Contact resistance: ≤100mΩ (measured with ohmmeter at 25 °C)
4. Lead wire: UL3321 AWG #18 or #16, black; custom-designed cable is also available
5. Pulling Strength of lead wire: 50 N applied from lead to lead for 1 minute. No slip-off or rupture
6. Insulation resistance: the resistance between the terminal and plastic case is over100 MΩ (measured with 500 VDC at 25 °C)

Rated Opening & Reset Temperature
Type Opening Temp. Closing Temp.
8AMC80 80±5℃ 40±15℃
8AMC85 85±5℃ 40±15℃
8AMC90 90±5℃ 45±15℃
8AMC95 95±5℃ 45±15℃
8AMC100 100±5℃ 50±20℃
8AMC 105 105±5℃ 50±20℃
8AMC 110 110±5℃ 55±20℃
8AMC 115 115±5℃ 55±20℃
8AMC 120 120±5℃ 60±20℃
8AMC 125 125±5℃ 60±20℃
8AMC 130 130±5℃ 65±20℃
8AMC 135 135±5℃ 65±20℃
8AMC 140 140±5℃ 70±20℃
8AMC 145 145±5℃ 70±20℃
8AMC 150 150±5℃ 75±20℃
8AMC 155 155±5℃ 75±20℃
8AMC 160 160±5℃ 80±20℃
