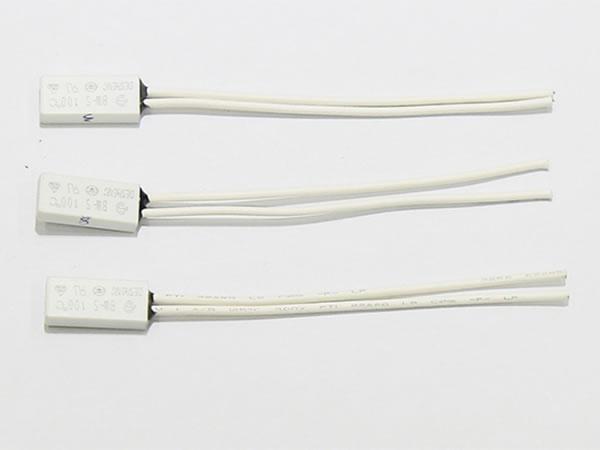

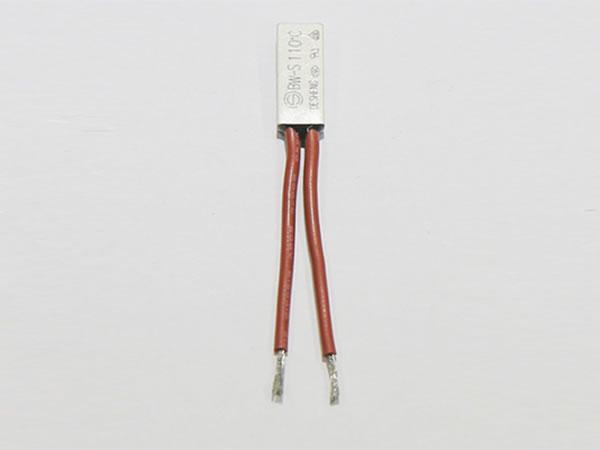

BW-S Thermal Overload Relay / Motor Thermal Protection Switch

  • BW-S Motor Thermal Protection Switch
  • BW-S Motor Thermal Protection Switch
  • BW-S Motor Thermal Protection Switch

BW-S series thermal overload relay / motor thermal protection switch is a newly developed one in Changsheng. It employs stainless steel casing. Relying on the temperature sensing of the bimetal and the current thermal effect, BW-S enables the condition of the bimetal to change swiftly, and then makes the circuit open. BW-S series thermal protection device is mainly applied in air conditioner motor, washing machine motor, pump motor, battery pack, heater, lamp, and ballast, etc.

Difference between BW-T and BW-S
BW-T and BW-S series thermal overload relay is collectively called BW series. The difference is that the casing of BW-T is made from stainless steel, and that of BW-S is made from plastic.

Features
1. The enclosure of BW-S series thermostat protector is made from plastic (doesn't need to be used with insulating sleeve), making its volume smaller than that of BW-T
2. Rated capacity of contact: 10A/24V DC, 10A/125V AC, 6A/250VAC
3. Contact resistance: ≤100mΩ (under room temperature)
4. Tensile strength of wire: putting the lead wire under a 50N axial pressure for 1min, and the wire shouldn't get broken or fall off from the motor thermal protection switch

Open and Close Temperature
Model Opening temperature Closing temperature Model Opening temperature Closing temperature
BW-S 60℃ 60±5 40±15 BW-S 115℃ 115±5 75±15
BW-S 65℃ 65±5 45±15 BW-S 120℃ 120±5 80±15
BW-S 70℃ 70±5 50±15 BW-S 125℃ 125±5 85±15
BW-S 75℃ 75±5 50±15 BW-S 130℃ 130±5 90±15
BW-S 80℃ 80±5 50±15 BW-S 135℃ 135±5 95±15
BW-S 85℃ 85±5 55±15 BW-S 140℃ 140±5 100±15
BW-S 90℃ 90±5 60±15 BW-S 145℃ 145±5 105±15
BW-S 95℃ 95±5 65±15 BW-S 150℃ 150±5 105±15
BW-S 100℃ 100±5 70±15 BW-S 155℃ 155±5 110±15
BW-S 105℃ 105±5 70±15 BW-S 160℃ 160±5 110±15

Changsheng is a leading motor thermal protection switch manufacturer and thermal protector supplier, offering various thermal switching products to meet many electric motor thermal overload protection needs. Our company offers a wide range of air conditioner motor protector, pump motor protector, heater protector, and the thermal protection products have passed many certificates like UL, VDE, KC, CE, CQC.
