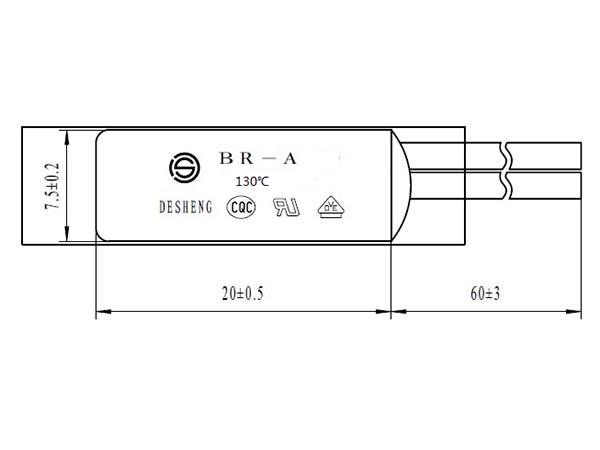

BR-A Thermal Overload Relay / Motor Thermal Protection Switch
BR-A2D, BR-A, and BW thermal overload relays are in the same series, which has been existed in the market for a long time and is always in great demand. It is mainly applied in air conditioner motor, washing machine motor, dishwasher motor, ballast, lamps, and battery pack, etc. For a circuit equipped with this kind of thermostat, the current will not pass through the bimetal because the protector works only to detect the temperature, instead of working as a circuit protector.
Features
1. This kind of thermal overload relay is designed with the enclosure made from stainless steel. The thickened closing can bear 30MPa of pressure
2. Rated capacity of touch: 10A/24V DC, 10A/125V AC, 6A/250V AC
3. Contact resistance of the bimetallic thermostat: ≤100mΩ (under room temperature)
4. Tensile strength of wire: putting the lead wire under a 50N axial pressure for 1min, and the wire shouldn't get broken or fall off from the protector
| Model | Opening temperature | Closing temperature | Model | Opening temperature | Closing temperature |
| 60±5 | 40±10 | 105±5 | 70±15 | ||
| 65±5 | 45±15 | 115±5 | 75±15 | ||
| 70±5 | 50±10 | 120±5 | 80±15 | ||
| 75±5 | 50±15 | 125±5 | 85±15 | ||
| 80±5 | 50±15 | 130±5 | 90±15 | ||
| 85±5 | 55±15 | 135±5 | 95±15 | ||
| 90±5 | 60±15 | 140±5 | 100±15 | ||
| 95±5 | 65±15 | 145±5 | 105±15 | ||
| 100±5 | 70±15 | 150±5 | 105±15 |
Changsheng is a leading motor thermal protection switch manufacturer and supplier, offering various thermal switching products to meet many electric motor thermal overload protection needs. Our company offers a wide range of dishwasher motor protector, electrical ballast protector, light fixture protector, and the thermal protection products have passed many certificates like UL, VDE, KC, CE, CQC.
