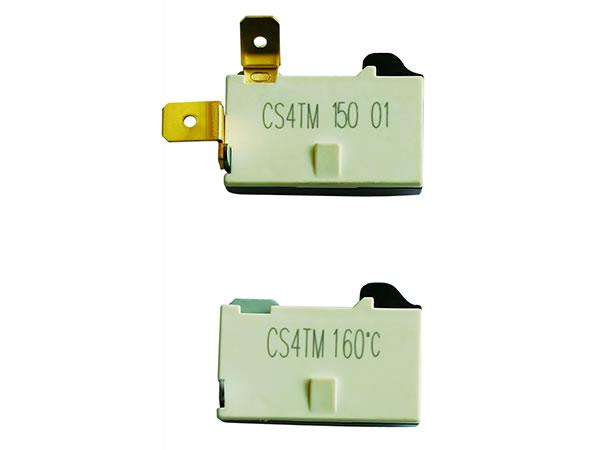

CS4TM Thermal Overload Relay / Air Compressor Motor Thermal Protection Switch
The basic function set of the 4TM thermal overload relay with plug-on feature is to protect the motor in a refrigeration compressor from overheating as a result of locked rotor or running overload. The CS4TM provides this protection by sensing the current and temperature of the motor.

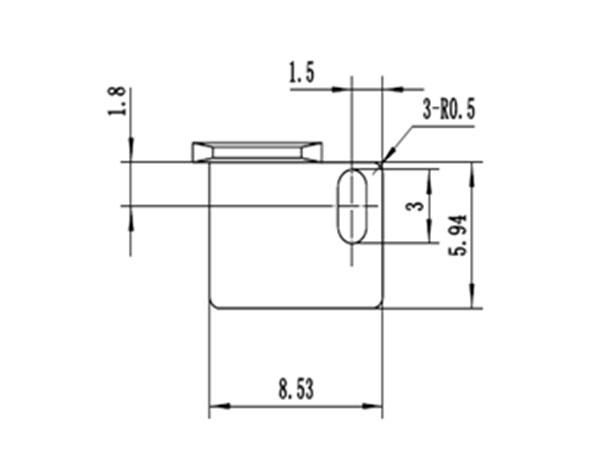

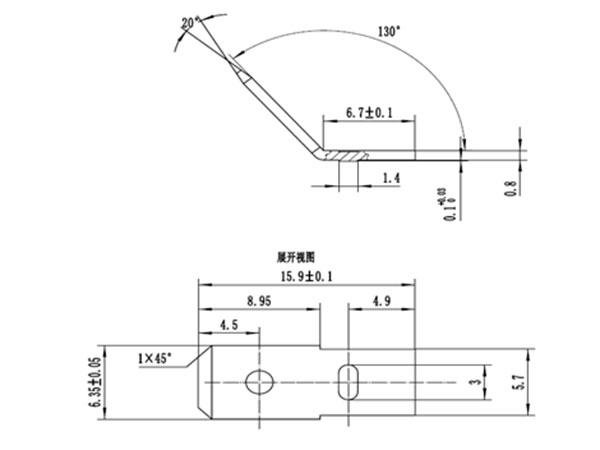

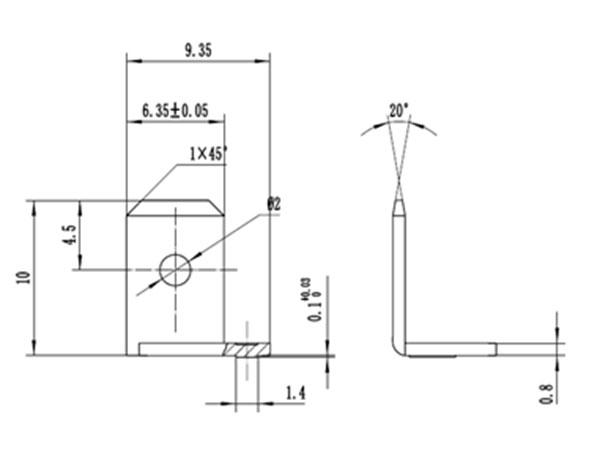

Thermal protector drawings
| CS4TM-XXX-XX | |
| CS4TM | basic model designation |
| XXX | opening temperature |
| XX | Current rating identification |
Characteristics
1. Contact capacity: 20A/250VAC 40A/125VAC
2. Trip time: on your request.
3. Contact resistance: ≤100mΩ (measured with ohm meter at 25 °C)
4. Pulling Strength of Terminals: 60 N applied from lead to lead for 5S. No slip-off or loose.
5. Insulation resistance : the resistance between the terminal and plastic case>100 MΩ (measured with 500 VDC at 25 °C)
| Model | Opening temperature | Closing temperature (reference) |
| 100±5 ℃ | 45±10 ℃ | |
| 105±5 ℃ | 45±10 ℃ | |
| 110±5 ℃ | 45±10 ℃ | |
| 115±5 ℃ | 45±10 ℃ | |
| 120±5 ℃ | 45±10 ℃ | |
| 125±5 ℃ | 50±10 ℃ | |
| 130±5 ℃ | 50±10 ℃ | |
| 135±5 ℃ | 50±10 ℃ | |
| 140±5 ℃ | 50±10 ℃ | |
| 145±5 ℃ | 50±10 ℃ | |
| 150±5 ℃ | 55±15 ℃ | |
| 155±5 ℃ | 55±15 ℃ | |
| 160±5 ℃ | 55±15 ℃ |
Changsheng is a leading bimetal thermal protector manufacturer and thermal protection switch supplier, offering various thermal switching products to meet many electric motor thermal overload protection needs. Our company offers a wide range of compressor motor protector, fridge protector, vending machine protector, and the thermal protection products have passed many certificates like UL, VDE, KC, CE, CQC.
