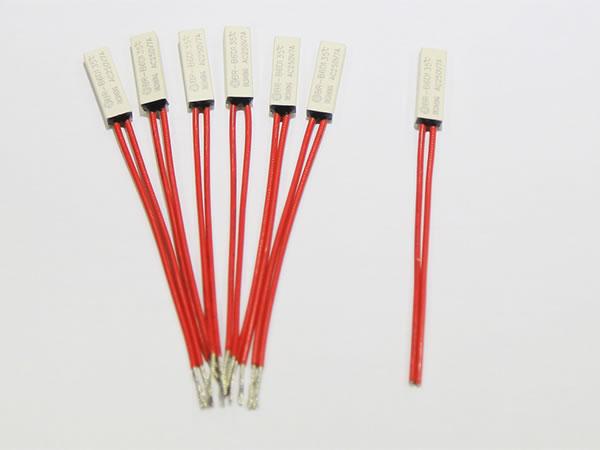

BR-B6D thermal overload relay / motor thermal protection switch is a kind of temperature limit switch working to prevent motor or other electrical devices from overheating. It is rather sensitive to temperature change. When there is an accident in a circuit, the high temperature will lead the bimetal to open rapidly and thus cutting the circuit off. The switch will close automatically after the device has cooled down to the allowable temperature. BR-B6D thermal switch is applicable in various small motors, battery, charger, and other electric appliances.
BR-B6D thermal protector is of short tripping time and reliable performance. Upon clients' request, we can equip the circuit breaker with the required length of wires. Besides, all of our thermal protection devices have passed TUV, UL, and CQC certificates. Our raw materials are in accordance with the environmental requirements of RoHS and REACH.
1. Rated touch capacity: 2A/24V DC, 10A/125V AC, 7A/250V AC
2. Service life: 20,000 times (under rated touch capacity)
3. Contact resistance: 30 mΩ
4. Users have access to choose the wire's model, color, length, and length of stripping (standard wires like UL1332 and UL3266 are prepared for option)
|Model||Opening temperature||Closing temperature||Model||Opening temperature||Closing temperature|
Changsheng is a leading bimetal thermal protector manufacturer and supplier, offering various thermal switching products to meet many electric motor thermal overload protection needs. Our company offers a wide range of mini motor protector, battery charger protector, electric heater protector, and the thermal protection products have passed many certificates like UL, VDE, KC, CE, CQC.
