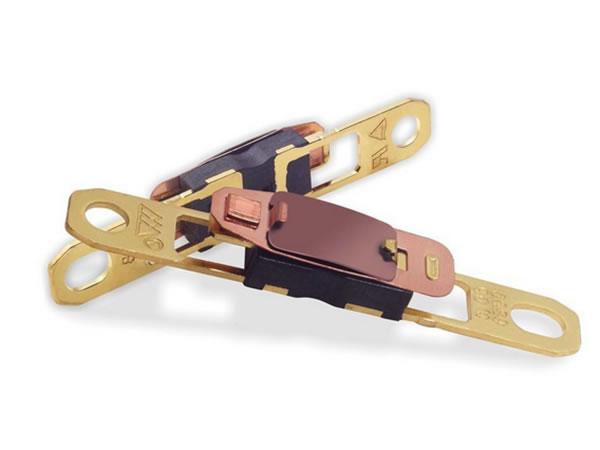

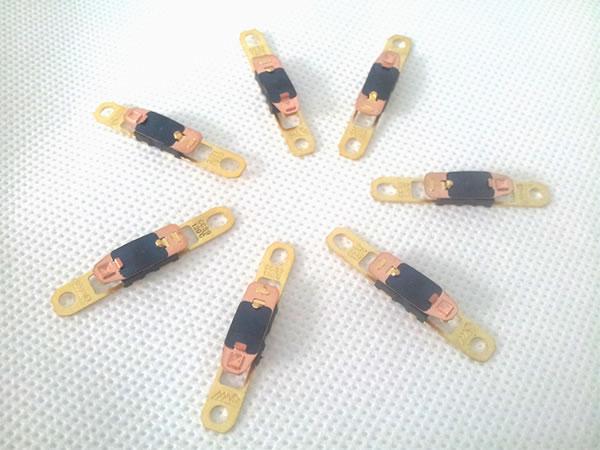

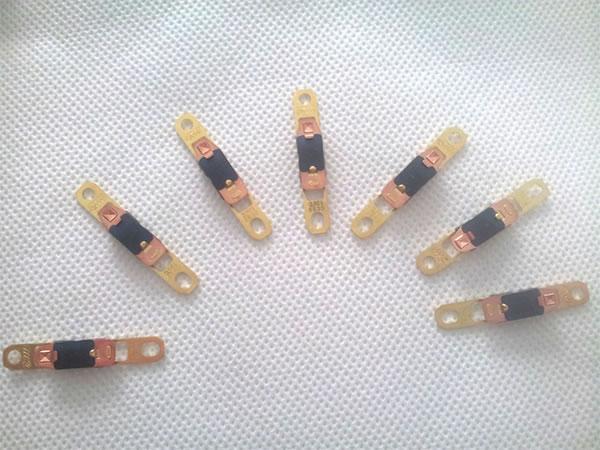

CCS9 series thermal overload relay / motor thermal protection switch features open structure and high thermal conductivity. Its bimetal is competent in responding rapidly to little temperature change. With delicate exterior and small volume, this thermal limit switch is easy to be mounted on electric devices. The reset operation is done manually. CCS9 series thermostat switch is mainly applied in various electric appliances like hair dryer, popcorn machine, electric heater, dehumidifier, heating rack, dryer, etc.

Additionally, there is no current passing through the operators' bimetal, so the interference of the bimetal's self-heating is completely avoided, making the temperature control process more precise.

Specification
Capacity of contacts: AC250V/12A, AC125V/20A, AC24VDC/20A
Opening temperature: 50~160℃; in increment of 5℃
Standard tolerance: ±5℃
Contact resistance: ≤50mΩ
Service life: 10000 times (under rated capacity)

Note
Don't touch the bimetal or other temperature sensing elements when you are using or installing the thermal protector, or it may be inaccurate.
